Best Price 15kva High Frequency Induction Annealing Machine
product description
Adopting IGBT power devices and our second-generation converter control technology, higher reliability of the equipment, low maintenance costs; .100% load continuity, maximum power, 24 hours operation.With constant current/constant power control function, the heating efficiency is higher; Output power, frequency and current are fully displayed. Unlike larger power models which use drive board and mother board, HF-15 series induction heating machine use MOS board and mother board, no drive board is used. It's maximum oscillation power is 15 KVA, compact HF-15 and split type HF-15AB are available. They are widely used for small parts heating or soldering requirement, widely used for welding, annealing, melting, quenching process in extensive applications.
Application scope
The 15KVA high-frequency induction annealing machine delivers versatile industrial applications with precision and efficiency. Ideal for diamond saw blade and turning tool welding, it ensures strong carbide bonding with minimal thermal distortion. The system excels in stainless steel cylinder annealing and precious metal (silver/copper) processing, offering uniform heating through programmable 3-stage timing (heating-retain-cooling). Its rapid 3-second heating capability makes it perfect for hammer quenching and automotive/machinery parts heat treatment (gears, shafts). Operating at 30-100kHz frequency with 220V single-phase input, the machine features water cooling (2-5L/min) and over-current/voltage protection for stable performance. The compact 18-44kg design supports portability while maintaining an 80% duty cycle for continuous operation. With 40% greater energy efficiency than traditional methods, this CE-certified system is a cost-effective solution for diverse metalworking needs, from stress relief to surface hardening applications.
Configuration and Performance
This 15KW high-frequency induction annealing machine features advanced MOSFET/IGBT power modules with European inverter technology, delivering stable 30-100kHz frequency output. The compact 18-44kg unit operates on 220V single-phase power, supporting both fixed and mobile workshop installations. Its digital control panel enables precise parameter adjustments, while the integrated water-cooling system (2-5L/min flow) ensures thermal management during prolonged operations.
Performance-wise, the machine achieves rapid heating within 3 seconds, ideal for applications like diamond tool welding and stainless steel annealing. The three-stage programmable timer (0-99s per stage) automates heating, insulation, and cooling cycles with ±1% temperature accuracy. An 80% duty cycle allows continuous 8-hour operation without performance degradation, backed by over-current/voltage/overheat protection circuits.
Key technical advantages include a 90% energy conversion efficiency—reducing power consumption by 40% versus traditional resistance heating. The electromagnetic induction coil generates uniform thermal distribution for consistent results in precious metal processing (gold/silver) and automotive part hardening.
The system excels in diverse metalworking scenarios: quenching hammers (surface hardening up to HRC60), stress-relieving welded joints, and brazing carbide tips to saw blades. Its adjustable 15-100% power output accommodates materials from thin copper wires (0.5mm) to steel rods (20mm diameter). The audible alarm and fault code display streamline troubleshooting.
Complete with a 1-year warranty, this machine combines industrial durability with user-friendly operation. Optional accessories include infrared pyrometers for non-contact temperature monitoring and customized induction coils for specialized geometries. Its plug-and-play design requires minimal training, making it suitable for both small workshops and large-scale production lines.
Technical specifications
HF-15 |
Specification |
Max Oscillation Power |
15 KVA |
Oscillation Frequency |
30-100KHZ |
Maximum Input Power |
7KW |
Heating Current |
200-600A |
Cooling Water Requirements |
0.2Mpa, 2-5L/min |
Duty Cycle |
80% |
Connection Cable Length (Host-Extension) |
HF-15 is compact, connection cable no need. For HF-15AB 2m cable is used |
Optional Configurations |
Default panel has no timing function, timing function machine is optional |

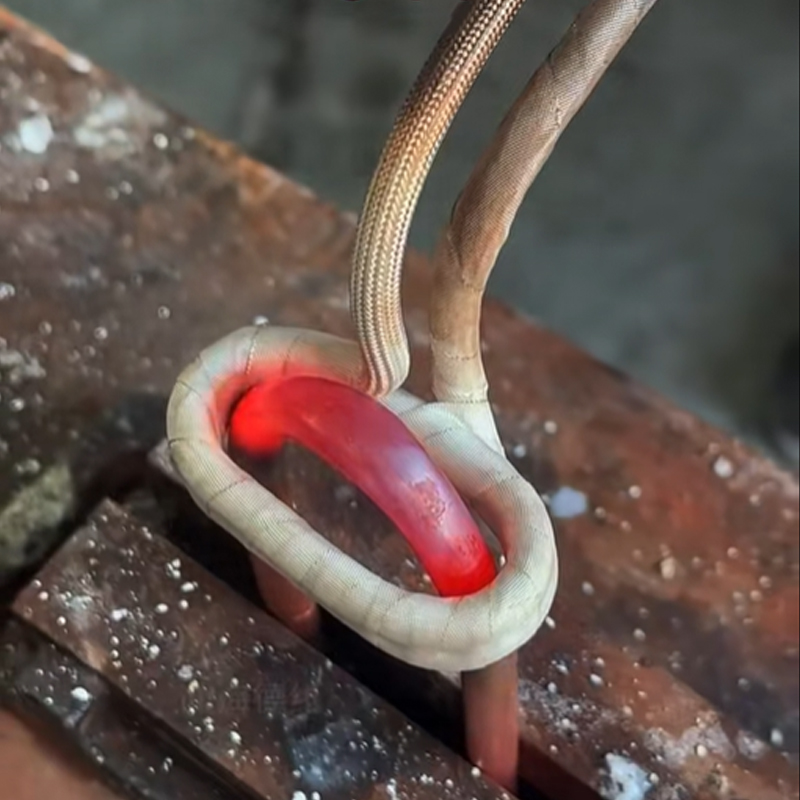

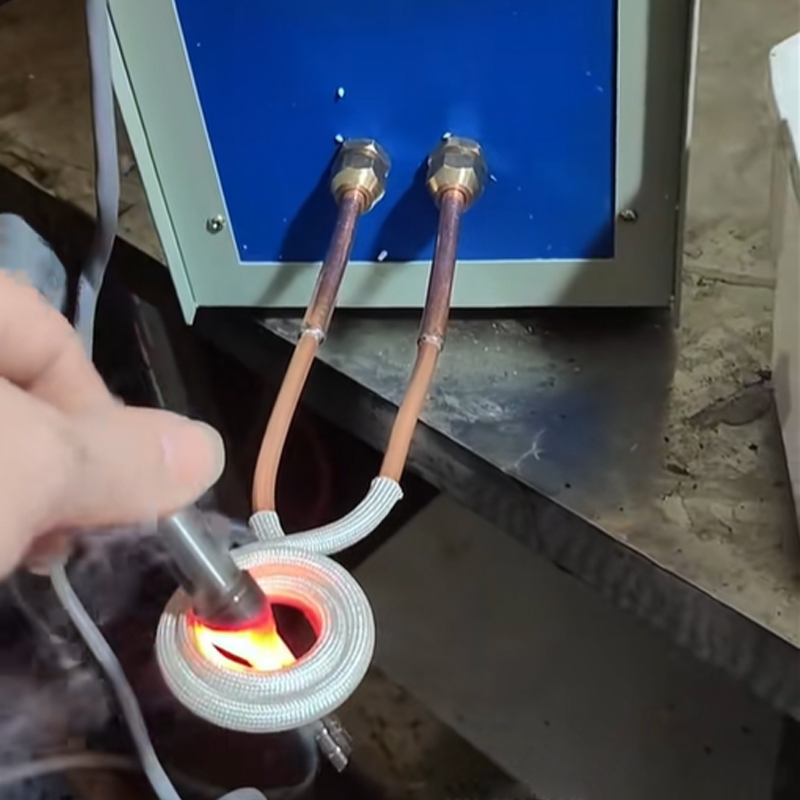

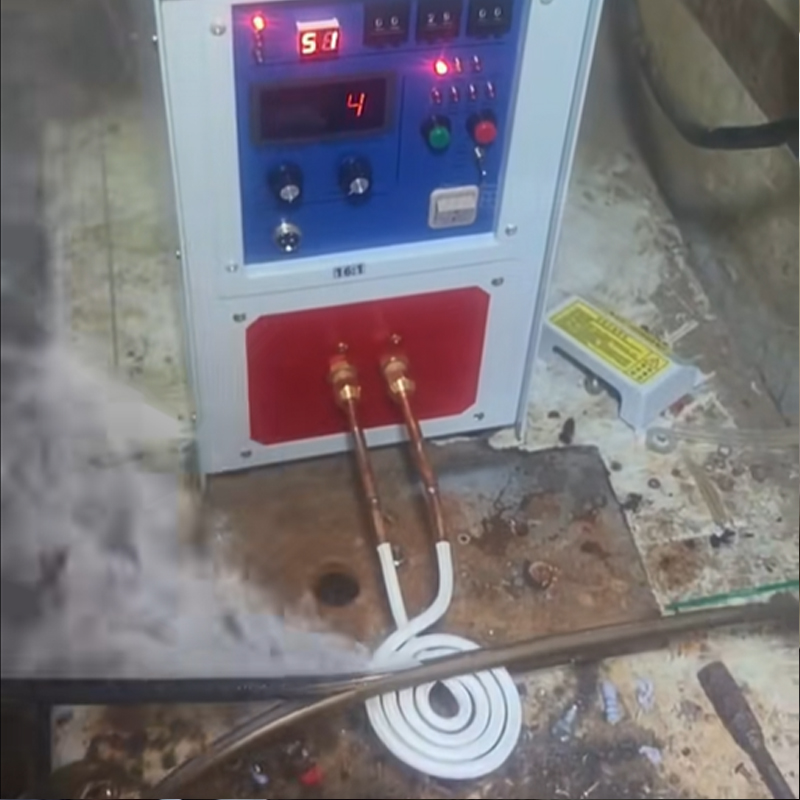

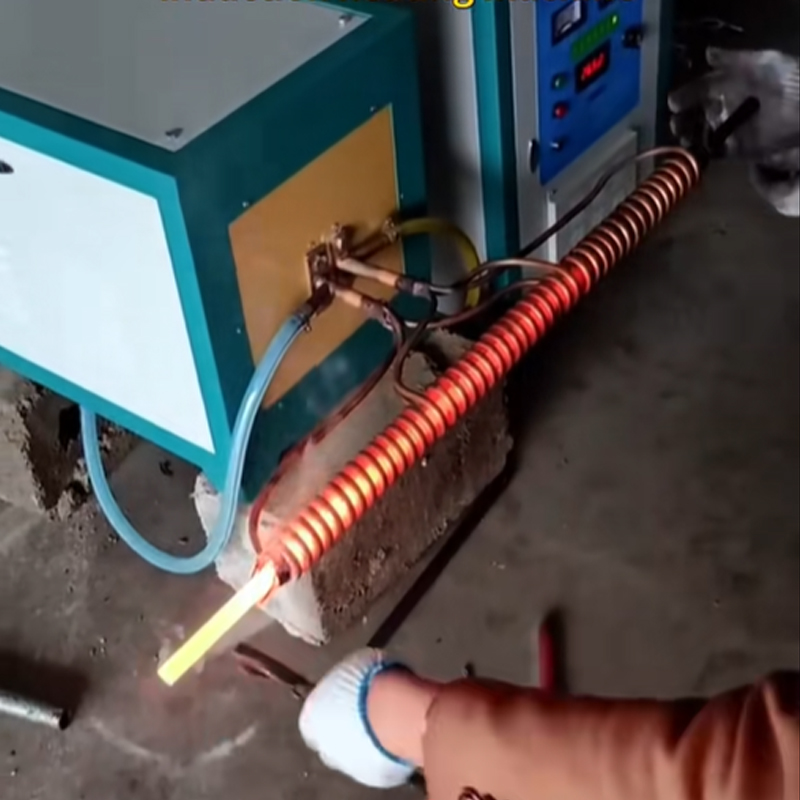

application Scenarios:
