Prospect of handheld high output power induction heating machine

Prospect of handheld high output power induction heating machine

Handheld high-output power induction heating machines are an exciting development in industrial and manufacturing technology, offering significant potential for a wide range of applications. These devices use electromagnetic induction to heat conductive materials quickly and efficiently, and their portability and high power make them particularly valuable for tasks requiring precision, mobility, and speed. Below, I’ll outline the prospects, advantages, challenges, and potential future developments for these machines, based on current trends and available information.

Prospects and Applications

1. Versatile Industrial Applications:

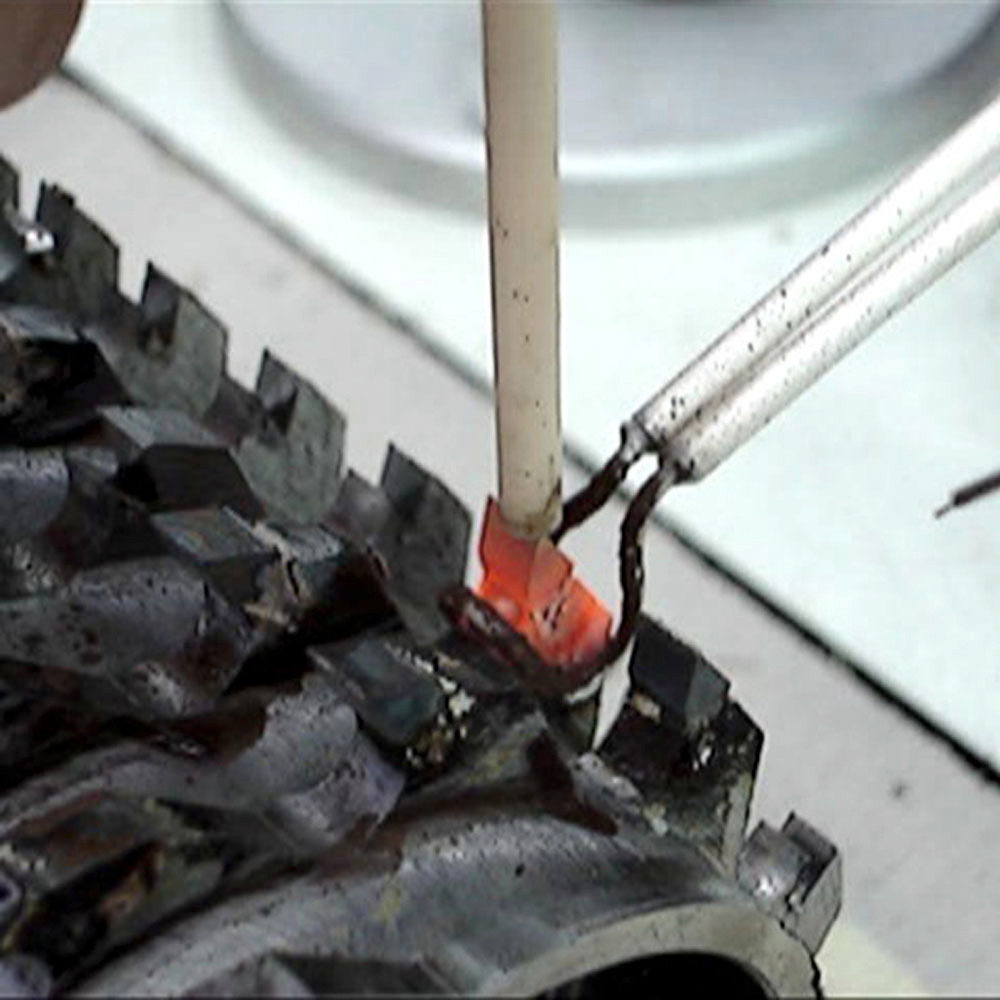

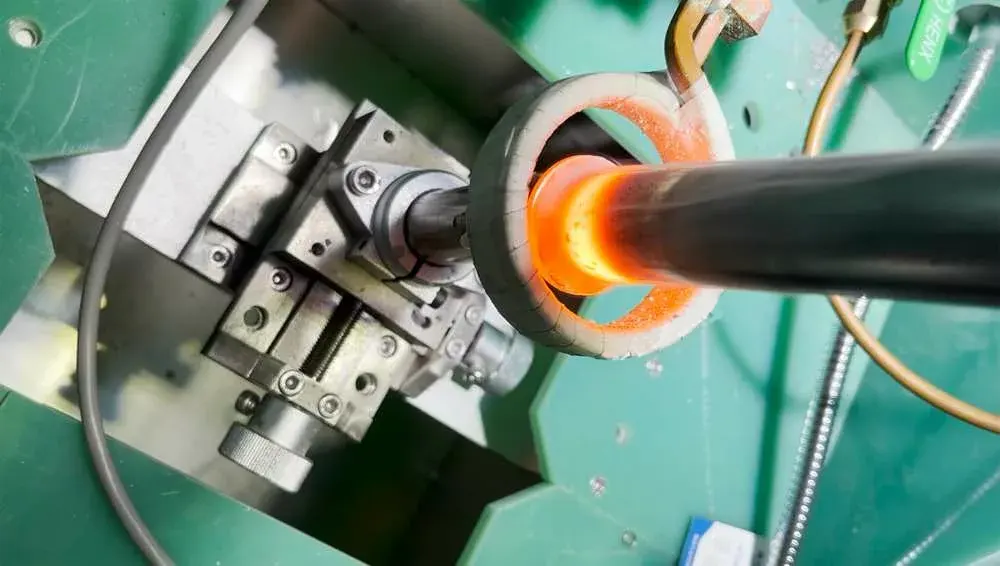

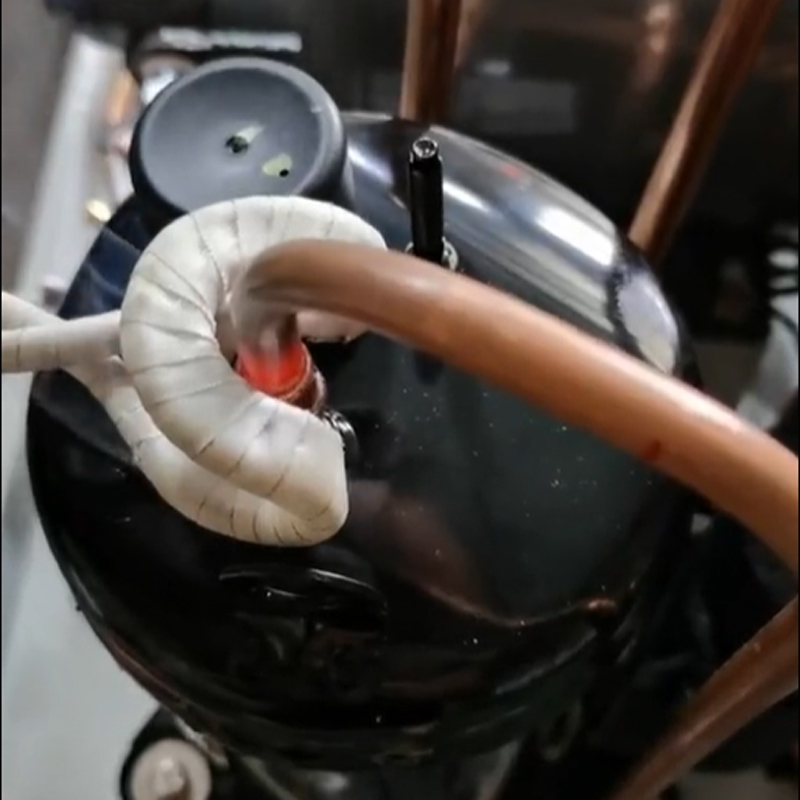

1. Brazing and Welding: Handheld induction heaters are increasingly used for brazing copper tubes, aluminum pipes, and transformer joints, particularly in industries like HVAC, automotive, and refrigeration. Their ability to deliver precise, localized heat makes them ideal for joining small or delicate components, such as circuit board connectors and fine jewelry.

2. Surface Hardening and Heat Treatment: These machines are suitable for surface hardening of small parts like steel strips, micromotor shafts, and tools, as well as annealing to improve material properties. High-frequency models (e.g., 200-800 kHz) are especially effective for shallow heating depths required in surface treatments.

3. Field Repairs and Maintenance: Their portability allows for on-site applications, such as loosening seized bolts, removing rusted parts, or preheating welds in automotive repair, marine, and salvage operations. This reduces downtime and eliminates the need for open flames, improving safety.

4. Specialized Uses: Applications like induction coating, forging, and melting are emerging, particularly for small-scale or remote operations. For example, portable units can be used for melting precious metals like gold or silver in jewelry production.

2. Growing Market Demand:

1. The demand for compact, efficient, and energy-saving heating solutions is driving the adoption of handheld induction heaters. Industries are increasingly prioritizing environmentally friendly technologies, and induction heating’s non-contact, energy-efficient nature aligns with these goals.

2. The global induction heating market is expanding, with manufacturers like UltraFlex, KETCHAN, and FOCO offering models with power outputs ranging from 5 kW to 160 kW and frequencies from 10 kHz to over 1 MHz, catering to diverse needs.

3. Integration with Automation and Industry 4.0:

1. Modern handheld induction heaters are being designed with smart features, such as digital phase control, self-protection functions, and compatibility with automated systems. This makes them suitable for advanced manufacturing environments where precision and repeatability are critical.

2. The ability to integrate with infrared thermometers or automated process lines enhances their appeal for high-volume production and customized solutions.

Advantages of Handheld High-Output Induction Heaters

· Portability and Flexibility: Compact designs (some as light as 1-2.5 kg for the heating gun) and long flexible cables (up to 40 meters) allow operators to work in tight or remote spaces, unlike stationary units.

· Energy Efficiency: Induction heating generates heat directly within the material, minimizing energy loss compared to traditional methods like oxy-acetylene torches. Some models claim up to double the energy savings.

· Safety: Non-contact heating reduces risks associated with open flames, making it safer for environments with flammable materials.

· Precision and Control: Adjustable power settings and high-frequency capabilities (up to 1.2 MHz) enable precise heating, reducing damage to surrounding areas and improving process quality.

· Ease of Use: Many units are designed for plug-and-play operation, with simple controls and minimal setup time, making them accessible for both manual and semi-automatic applications.

Challenges and Limitations

1. Power and Frequency Constraints:

o While high-output models (up to 160 kW) exist, most handheld units are limited to lower power ranges (5-60 kW) due to size and cooling requirements. Higher power units may require external chillers, reducing portability.

o Frequency ranges (10 kHz to 1.2 MHz) must be carefully matched to the application. High frequencies are ideal for surface heating but less effective for deeper penetration needed in forging or melting.

2. Cable Energy Loss: Long cables (e.g., 20-40 meters) used for remote heating can consume significant energy, reducing efficiency.

3. Cooling Requirements: High-output units often require water-cooling systems or industrial chillers, which can complicate field use and increase costs. Air-cooled options exist but are less common for high-power models.

4. Cost and Maintenance: While reliable, these machines use advanced components like IGBT modules, which can be costly to replace. Downtime due to component failure is a concern in high-demand environments, though manufacturers emphasize local support to mitigate this.

5. Material Limitations: Induction heating is primarily effective for conductive materials (e.g., metals), limiting its use for non-conductive materials like plastics or composites.

Future Developments and Trends

1. Miniaturization and Power Scaling:

o Advances in solid-state technology (e.g., MOSFET and IGBT) are enabling more compact, high-power designs. Future handheld units may achieve higher outputs (e.g., >100 kW) while maintaining portability.

o UltraFlex’s Smart Power System, with modular designs from 50-400 kW, suggests a trend toward scalable, compact solutions that could be adapted for handheld use.

2. Improved Cooling Solutions:

o Air-cooled systems, like those from Nippon Avionics, are gaining traction for their simplicity and reduced reliance on external chillers, making them more practical for field applications.

3. Enhanced Automation and IoT Integration:

o The incorporation of Industry 4.0 features, such as real-time monitoring, adaptive tuning, and data analytics, will likely make handheld units more efficient and compatible with smart factories.

o Infrared thermometers and automated coil adjustments could further improve precision and reduce operator error.

4. Broader Material Compatibility:

o Research into heating non-ferrous and low-conductivity materials (e.g., brass or specialized alloys) could expand applications, as seen in some Nippon Avionics models.

5. Battery-Powered Units:

o Innovations like battery-powered induction heaters (e.g., 1000W units described on Instructables) could enhance portability for remote or off-grid applications, though current models are limited to lower power outputs.

Conclusion

Handheld high-output power induction heating machines have significant potential to revolutionize industries requiring precise, mobile, and efficient heating solutions. Their portability, safety, and energy efficiency make them attractive for applications like brazing, hardening, and field repairs, particularly in automotive, HVAC, and jewelry sectors. However, challenges like cooling requirements, cable energy loss, and material limitations must be addressed to unlock their full potential. Ongoing advancements in solid-state technology, cooling systems, and automation suggest a bright future, with more powerful, compact, and versatile units likely to emerge in the coming years. For businesses, investing in these machines offers opportunities for cost savings, improved safety, and enhanced productivity, provided the equipment is matched carefully to specific applications
