Magnetic Levitation Induction Heating: The Revolutionary Technology for Future Industrial Heating

In the vast field of industrial heating, high-Frequency Induction heating technology holds a prominent position due to its outstanding efficiency and precision. However, with the continuous advancement of technology, a new heating method has gradually emerged—magnetic levitation induction heating. Although this technology has not yet reached the same level of application breadth as traditional high-frequency heating, it has become an important development direction for future heating technologies due to its unique principles and remarkable advantages.

1. Magnetic Levitation Induction Heating Innovation

1.1 ◇ Revolutionizing Traditional Technology

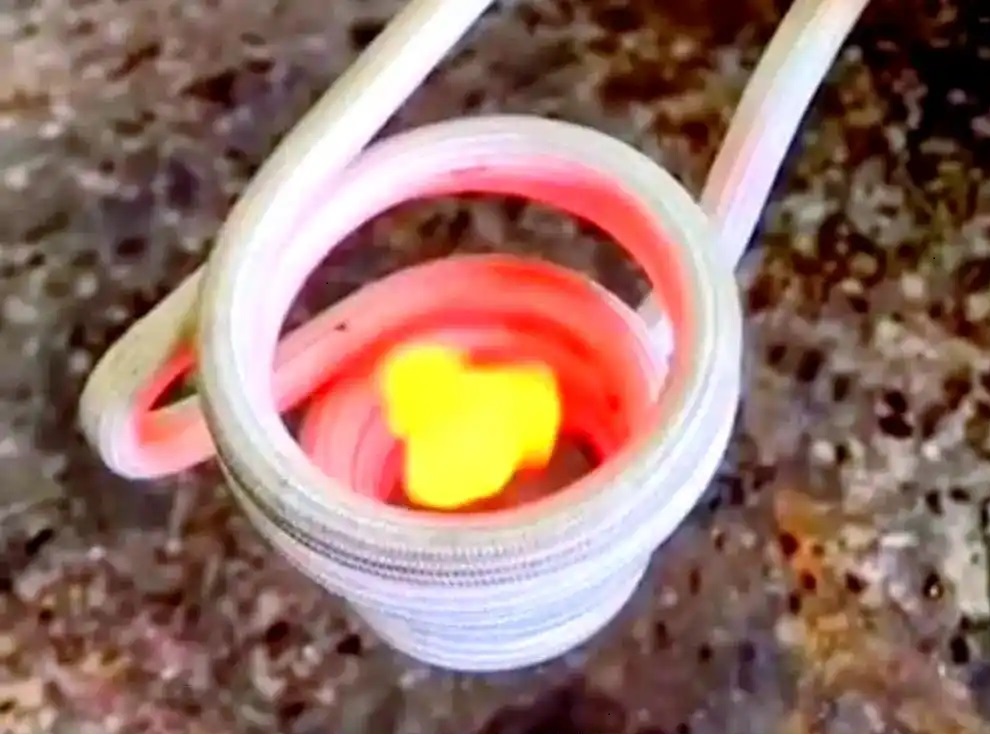

Magnetic levitation induction heating, this innovative technology, skillfully integrates electromagnetic induction with magnetic levitation technology. It breaks the conventional fixed mode of high-frequency heating, generating heat by inducing eddy currents within metal workpieces through an alternating magnetic field. What makes it more unique is that magnetic levitation induction heating uses magnetic field force to levitate and place the workpiece inside the heating coil, achieving a new realm of "contactless heating." In this state, the workpiece not only avoids heat loss caused by contact conduction but can also rapidly heat up through electromagnetic induction. Taking the heating experiment of a metal ball as an example, a steel ball with a diameter of only 10mm can be raised from room temperature to 800℃ in just 10 seconds while suspended, and the entire process is contactless and free of mechanical wear.

1.2 ◇ Value in Niche Scenarios

Although magnetic levitation induction heating technology has not yet been widely adopted in every field, the advantages it demonstrates in certain specific application scenarios are difficult to be replaced by other technologies.

1.2.1 ◇ Zero-Damage Heating for Precision Components

In the aerospace field, microsensor encapsulation and semiconductor chip pin soldering require high-precision heating technology. The advantage of magnetic levitation induction heating technology lies in the fact that the workpiece is uniformly heated while in a suspended state, thus avoiding stress deformation or contamination that may be caused by contact with traditional fixtures. A space-related enterprise adopted magnetic levitation induction heating technology when heating titanium alloy sensor probes with a diameter of 0.5mm, resulting in a significant improvement in welding yield from the original 78% to 95%, while completely eliminating the issue of fixture indentation damage.

1.2.2 ◇ Pollution-free melting of high-purity metals

In the purification of precious metals (such as platinum, rhodium) and the melting of nuclear-grade materials, the magnetic levitation induction heating technology has demonstrated significant advantages. Due to its non-contact heating method, this technology effectively avoids contamination issues caused by the contact between crucible or fixture materials and molten metal. A laboratory successfully melted high-purity gold with a purity of up to 99.999% by applying this technology, reducing the impurity content by two orders of magnitude compared to traditional crucible melting methods, fully meeting the standards for electronic-grade materials.

1.2.3 ◇ Homogenizing Heat Treatment of non-standard parts

When dealing with spiral pipe fittings and workpieces with complex internal cavity structures, magnetic levitation induction heating technology demonstrates unique advantages. As the workpiece can rotate 360° while in a levitated state, combined with the use of multiple sets of induction coils, it enables uniform heating of the workpiece from all directions. For example, a medical device manufacturer adopted magnetic levitation Induction Annealing technology in the production of titanium alloy artificial joints, successfully controlling the temperature difference between various parts of the component within ±5°C, a precision three times higher than traditional salt bath annealing processes.

2. Technical Bottlenecks and Future Prospects

The promotion of magnetic levitation induction heating technology still faces multiple challenges, including high equipment costs, limitations on workpiece size, and a lack of process databases. Since this technology requires integrating magnetic levitation control systems with high-frequency power supplies, its initial investment is often 2-3 times that of traditional high-frequency equipment. Meanwhile, the stable levitation of workpieces is generally limited to smaller diameters, restricting its application on large workpieces. Additionally, the levitation force parameters and heating curves for different materials require extensive experimentation to accumulate, undoubtedly increasing the difficulty of technology promotion.

However, with the continuous advancement of rare-earth permanent magnetic materials and intelligent control technology, magnetic levitation induction heating technology is gradually overcoming these bottlenecks and expanding into the field of medium to large workpieces. For example, a research team has successfully achieved levitation heating of an aluminum alloy wheel hub with a diameter of 300mm, indicating the potential for large-scale applications of this technology in areas such as automotive wheel heat treatment and high-pressure pipe welding.

3. Conclusion

The emergence of magnetic levitation induction heating technology has not only brought a brand-new solution to the field of industrial heating but has also challenged the traditional concept of "heating must involve contact" at a deeper level. In complex application scenarios such as precision manufacturing, high-end material processing, and special crafts, this technology, with its unique non-contact heating logic, has opened a new chapter in industrial heating. Looking ahead, as the cost of technology gradually decreases and the level of craftsmanship continues to improve, this innovative heating method is expected to move from the laboratory to a broader market, thereby leading us to develop a brand-new understanding of "thermal processing" technology.
