Best induction heater, axe chopper blade forging, knife blade forging, dagger blade forging machine
product description
The system supports customized induction coil based on given workpiece shape and size.
Application scope

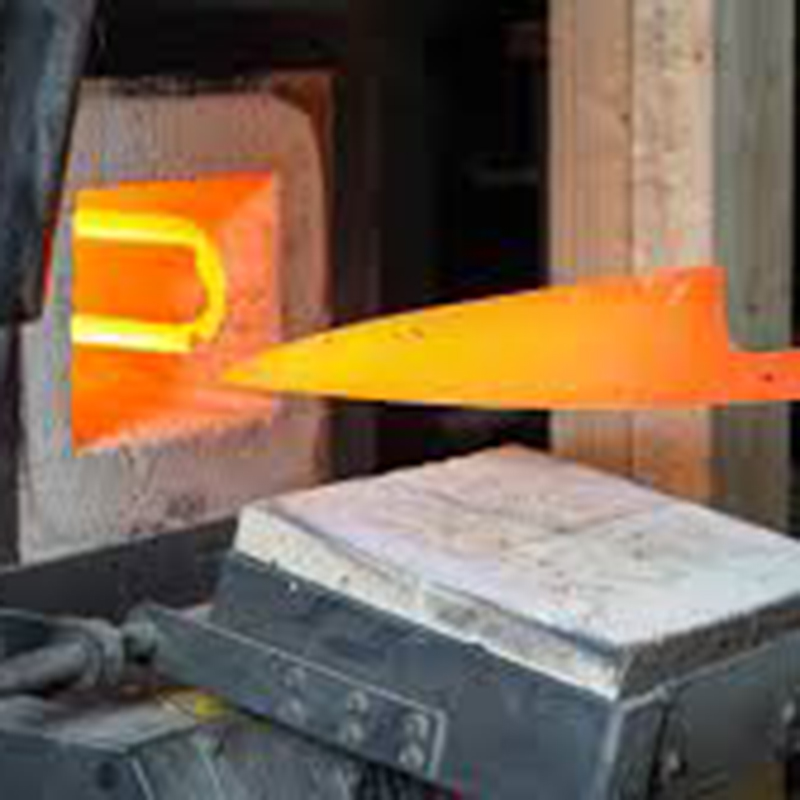

This high-performance induction heating machine is specifically designed for precision forging of cutting tools, including axe chopper blades, knife blades, and dagger blades. It ensures rapid, uniform heating for optimal metal shaping and hardening. Suitable for high-carbon steel, alloy steel, and Damascus steel, the machine enhances blade durability and edge retention. Ideal for blacksmiths, knife makers, and industrial forging workshops, it supports both small-scale custom forging and high-volume production. Features include adjustable power (10-50kW), temperature control (up to 1200°C), and fast cooling options for superior forging efficiency.
Configuration and Performance
1. Core Configuration
Power System: 40kW adjustable output with dual-frequency mode (500Hz-6000Hz) for precision heating of axe/knife/dagger blades2
Temperature Control: Up to 1200°C (±5°C) via integrated K-type thermocouple, compatible with high-carbon steel and Damascus alloys42
Workstation: Modular design with floating clamps (max. 168mm blade width), supporting continuous forging of 6m-long workpieces12
Safety: RoHS-compliant stainless steel housing with IP54 protection for industrial environments4
2. Key Performance
Efficiency: 90%+ energy conversion rate (high-frequency inverter tech), reducing forging cycle time by 40%2
Material Adaptability: Optimized for hard metals (65Mn steel, tungsten carbide) and composite forging processes26
Customization: Interchangeable induction coils and CNC-compatible interfaces for tactical knife production lines15
Certification: AS/NZS 60335.2.40 certified, ensuring safety in high-temperature operations4
Note: Supports manual/automated control modes for both small workshops and mass production
Technical specifications
1. Power & Frequency
Output Power: 10-60kW adjustable (supports continuous forging of large blades)
Frequency Range: 500Hz-150kHz
2. Heating Performance
Max Temperature: 1200°C (±5°C accuracy) with K-type thermocouple feedback
Heating Speed: 3-10 seconds for 20mm-thick steel (energy efficiency >90%)
3. Structural Design
Workstation: customized induction coil based on client’s workpiece outline
Cooling System: cooling water ≥0.2Mpa,≥10L/min
4. Compatibility & Safety
Materials: Optimized for high-carbon steel, Damascus alloys, and tungsten carbide
5. Control & Customization
Interface: Touchscreen + CNC compatibility for programmable forging profiles
Accessories: Interchangeable induction coils (support manual/automated modes)
