High efficiency 6KW induction heater machine for production line electronics welding
product description
6KW High Power – Rapid heating for improved throughput
Precision Control – Adjustable frequency (30-100KHz) for optimal heat penetration
Durable & Reliable – Built for 24/7 industrial operation
Safety Compliance – Overload & overheating protection
Ideal for PCB assembly, connectors, and precision metal joining, this machine ensures high-quality, repeatable results in demanding production environments.
Application scope

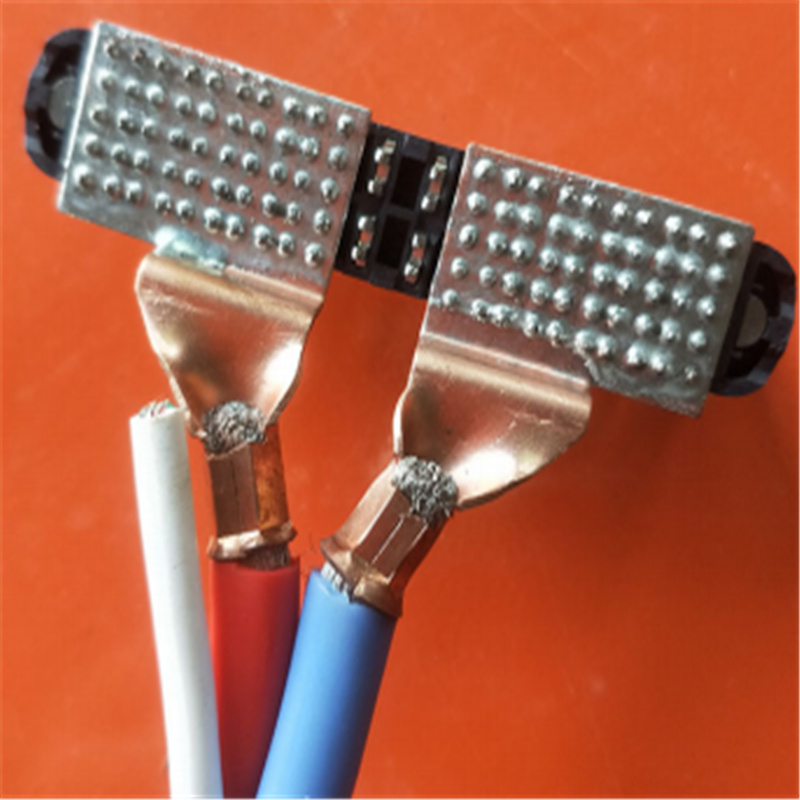

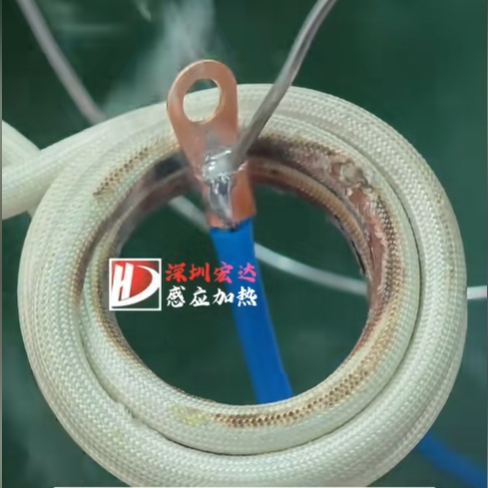

Wire terminal soldering, aluminum components coupling, brass to aluminium soldering, electronics soldering.
This 6KW high-efficiency induction heater is designed for automated production lines, offering fast and precise heating for electronics welding applications. Ideal for PCB assembly, connector soldering, and precision metal joining, it ensures consistent performance in high-volume manufacturing environments. Suitable for soldering, brazing, and annealing processes, the machine enhances productivity while maintaining energy efficiency. Its industrial-grade durability makes it perfect for automotive, aerospace, and consumer electronics production, where reliability and repeatability are critical. Compatible with robotic arms and conveyor systems, it seamlessly integrates into smart factory setups.
Configuration and Performance
Core Configuration
Power module: adopts IGBT power device, supports 3-5KW continuously adjustable output, high frequency band up to 300KHz.
Cooling system: external water cooling (≥150L/min flow) or air-cooled models can be selected
Control unit:
Digital touch screen interface, support constant current / constant power mode switching
Built-in DSP intelligent control system, real-time monitoring of temperature and power curve
Inductor compatibility: can be customized to adapt to the coil 0.1mm very fine metal to 1cm ² welding area
Performance
Heating speed: 3-5 seconds to reach the brazing temperature (copper, silver and other materials)
Precision control:
High-frequency vibration-free heating, welding position error ≤ 0.1mm
Support for automatic frequency compensation, reducing the precision dependence on induction head production
Stability:
100% load duration, support 24 hours continuous operation
Multiple protection (over-voltage / over-current / short circuit / overheating)
Energy efficiency ratio: compared with the traditional resistance heating energy saving of more than 35%
Typical application verification

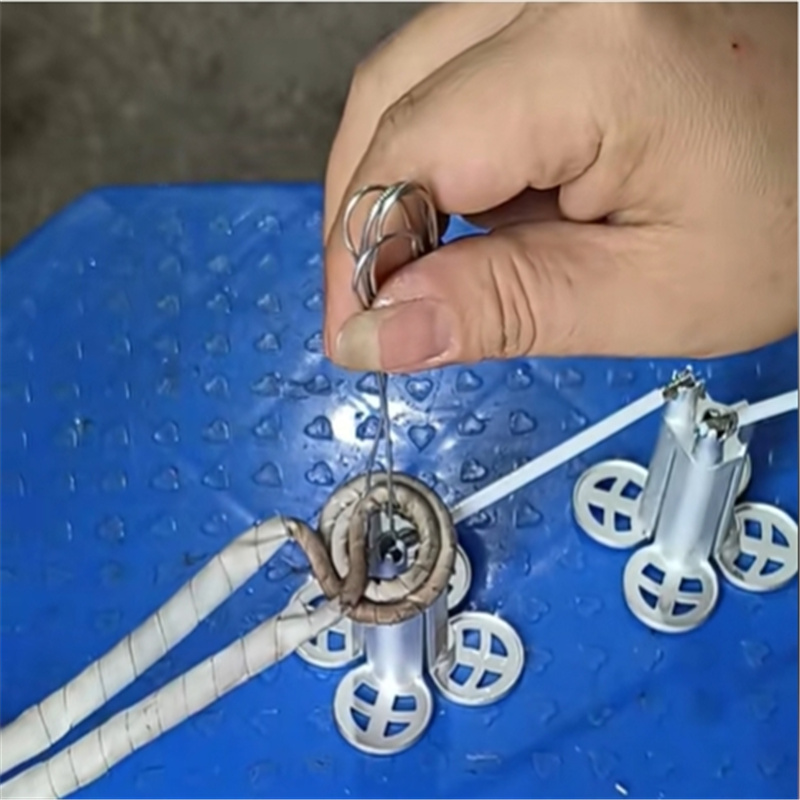

Precision welding: Successfully used in 0.1mm very fine wire welding and jewelry brazing.
Industrial scenarios: stable performance in motor rotor hot assembly and tool hardening.
Note: Actual performance may vary slightly depending on workpiece material, inductor design and cooling conditions.
Technical specifications
6KW handheld industrial induction heater core parameters
Basic parameters
Power range: 6KW (can be customized higher power)
Input voltage: 220V single-phase
Working frequency: 0.5MHZ-1.1MHZ
High frequency (30-100KHz): for precision welding, small parts heat treatment
Ultra-high frequency (100KHz-1.1MHz): for very fine workpiece or rapid heating needs
Load duration: 100% (support continuous operation)
Main components:
