Induction heater hot shrinking process for Coupling assembling
product description
With advanced temperature control technology, the heater ensures consistent and accurate heating, maintaining the temperature within a narrow tolerance range. This not only guarantees a secure and reliable fit but also minimizes the risk of thermal damage to the coupling and the shaft. The equipment features an intuitive operation interface and robust safety protection mechanisms, such as over - temperature and over - current protection, ensuring both ease of use and operational safety. Its compact design and high - power output make it suitable for various production environments, significantly enhancing the efficiency and quality of coupling assembling operations.
Application scope
This induction heater for the hot shrinking process in coupling assembling finds extensive applications across multiple industries:
Manufacturing Industry
In automotive manufacturing, it is used for assembling couplings in engine transmissions, drive shafts, and power - take - off systems. This ensures precise fitting, reducing vibrations and enhancing the overall performance and durability of vehicles.
Power Generation Sector
For both traditional power plants (coal - fired, gas - fired) and renewable energy facilities (wind turbines, hydroelectric power plants), the induction heater is crucial for coupling assembly. In power plants, it helps in the efficient assembly of couplings in turbines and pumps, contributing to stable power generation.
Mining
Mining equipment, such as excavators, loaders, and conveyor systems, rely on couplings for power transmission. The induction heater ensures proper coupling installation, enabling these heavy - duty machines to operate under harsh conditions.
Aerospace
In the aerospace industry, where precision and reliability are of utmost importance, the induction heater is applied in the assembly of couplings for aircraft engines and auxiliary power units.
Configuration and Performance

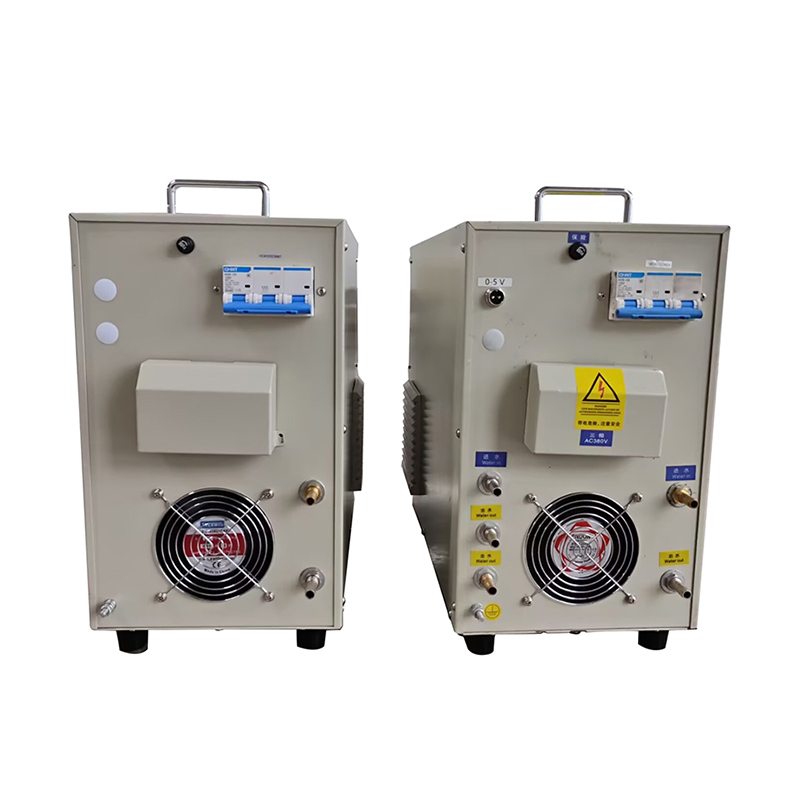

Induction Heater for Hot Shrinking Process in Coupling Assembling
Product Configuration:
Our industrial induction heater is specifically designed for the hot shrinking process in coupling assembly, ensuring precise, efficient, and safe heating for interference-fit applications. The system features:
High-Frequency Power Supply: Adjustable frequency (5-30 kHz) for optimal heating of various coupling materials (steel, stainless steel, alloy).
Induction Coil Options: Customizable copper coils (solenoid, split-type, or flexible designs) to match coupling dimensions (50mm–500mm OD).
Temperature Control Unit: Integrated IR pyrometer or thermocouple feedback for real-time monitoring (range: 150°C–600°C).
Cooling System: Air- or water-cooled design to maintain coil longevity during prolonged operation.
Portable/Stationary Models: Compact benchtop units for workshops or heavy-duty mobile systems for on-site use.
User Interface: Touchscreen or digital controls with preset programs for repeatable heating cycles.
Performance Highlights:
Rapid Heating: Achieves target temperatures in 1–5 minutes (vs. hours with flame/oven methods), reducing assembly time.
Uniform Heat Distribution: Eliminates thermal stress and distortion, ensuring consistent expansion for tight-fit coupling installation.
Energy-Efficient: 30–50% lower energy consumption compared to traditional methods, with no open flames or fumes.
Precision & Safety: Closed-loop temperature control prevents overheating, while ergonomic design minimizes operator risk.

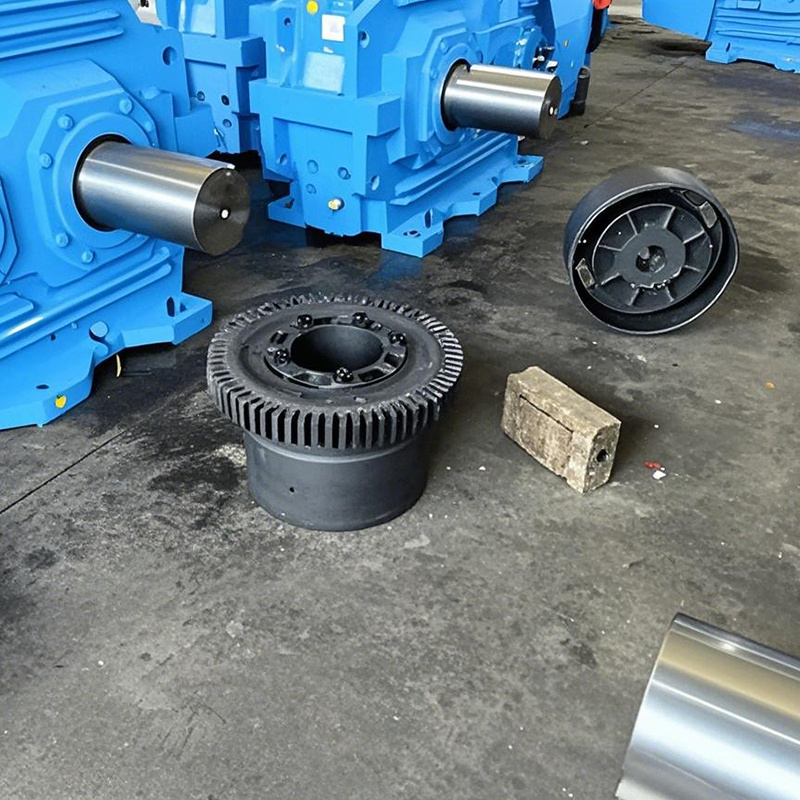

Versatility: Compatible with gearbox couplings, hydraulic fittings, shaft sleeves, and other high-tolerance components.
Ideal for heavy machinery, marine, and automotive industries, our induction heater streamlines coupling assembly with repeatable, clean, and maintenance-free operation. Contact us for technical specifications tailored to your application!
Technical specifications
Power & Frequency Range
Output power: 15–120 kW (adjustable for coupling sizes)
Frequency: 3–30 kHz (optimized for uniform through-heating of steel/stainless steel couplings)
Temperature Control
Heating range: 200°C–600°C
Auto-shutoff upon reaching target temperature to prevent overheating
Coil Compatibility

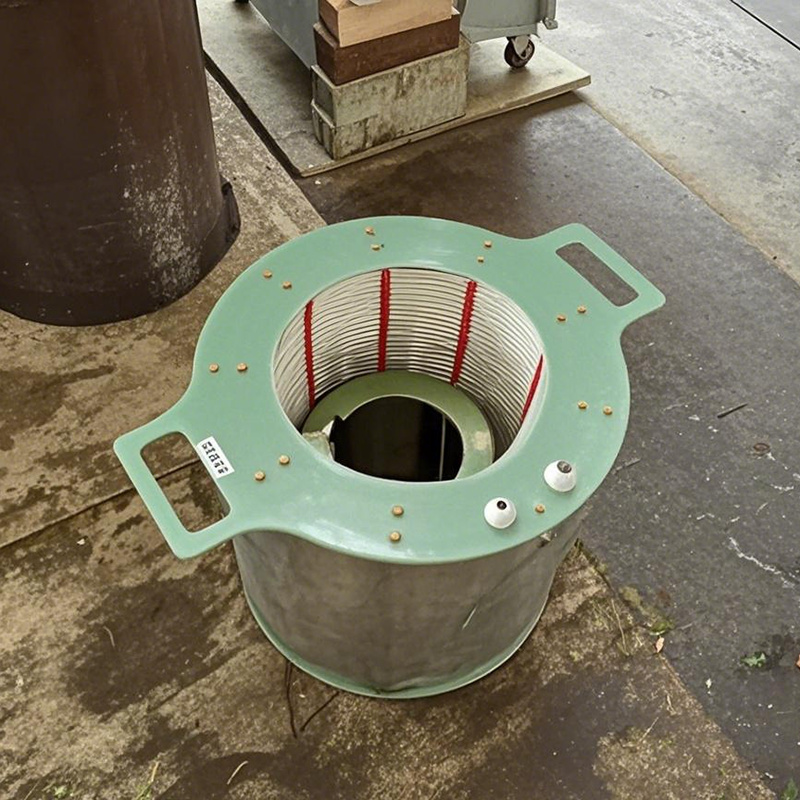

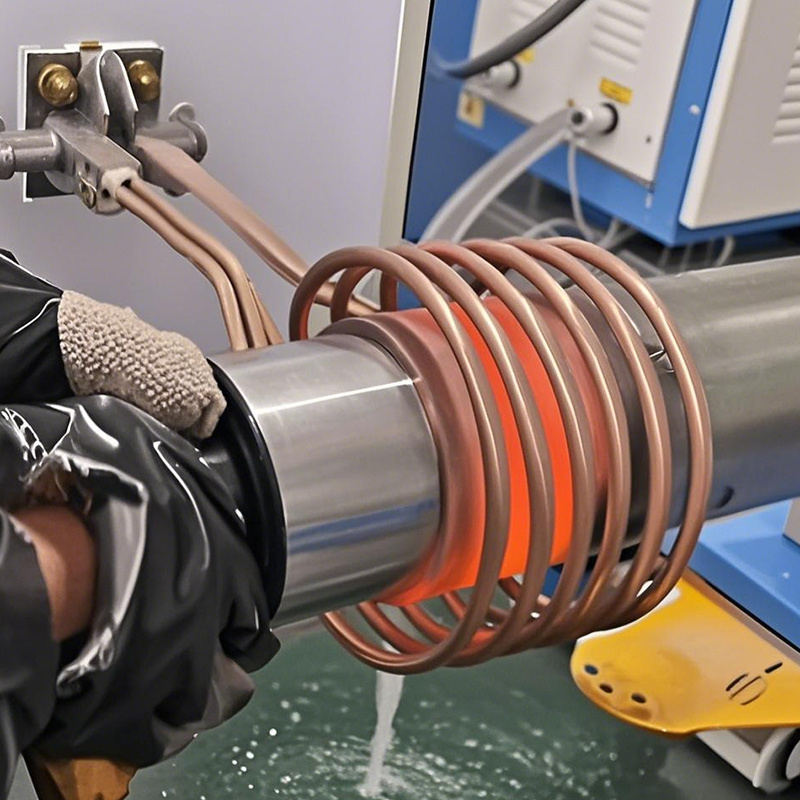

Customizable copper induction coils for concentric heating of couplings
Quick-change design for different coupling geometries35
Cooling System
Water-cooled coil configuration (flow rate ≥10 L/min) for continuous operation
Thermal protection to prevent coil degradation16
Safety & Compliance
Emergency stop button and fault alarm system (overcurrent/temperature protection)
These specs align with industrial requirements for interference-fit coupling assembly, balancing efficiency and precision.
